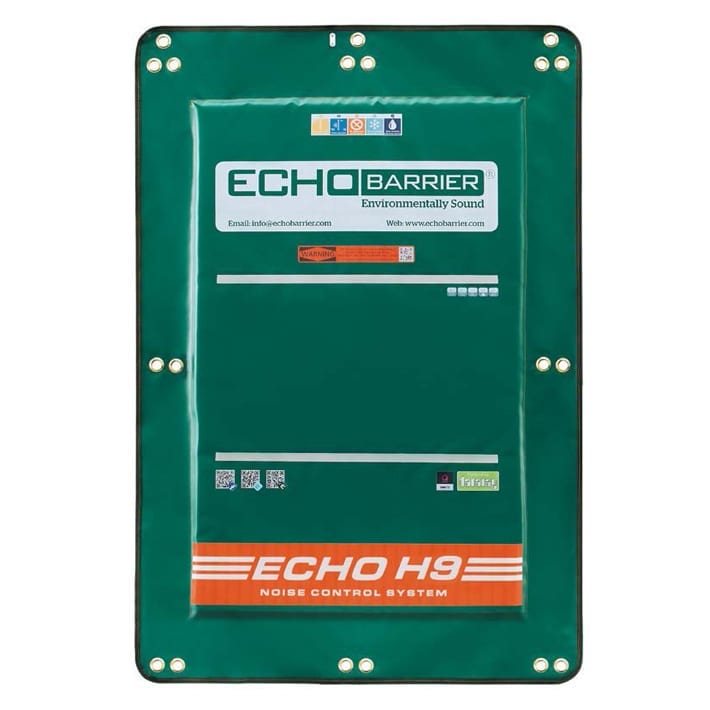

Echo Barrier H9™ Portable Acoustic Barrier EBH9G

Widely endorsed and certified, locally and internationally, Echo Barrier is the first choice for responsible operators who prioritize both performance and sustainability.

Call for Pricing

SKU: EBH9G Category: Brand:


The Echo Barrier H9™ offers outstanding all-round performance, complementing exceptional noise absorption, and reduction with portability, flexibility, durability, and adaptability. Impressively resistant to water and to extremes of temperature, the Echo Barrier H9™ rises to a multitude of challenges, such as those posed by humid environments and highly stringent
fire regulations. ASTM E84 tests for flame spread and smoke development indicate its suitability for projects subject to highly stringent fire regulations.


  • Superior acoustic performance, up to 40.1 dB (H10)
  • Lightweight 11.7lbs/5.3kg (H9) for easy one-person handling
  • Weatherproof/Industrial durability
  • Unique roll-up design for compact storage and transportation
  • Quick deploy
  • Fire resistance (Tested to ASTM E84)
  • Safe to handle: no fiberglass or Rockwool used
  • Tensile Tested: 5.85kN vertical / l.lkN horizontal (H9)
  • 12-month manufacturer’s warranty


  • (1) Acoustic Barrier Panel


Max Noise Reduction (Lab Tested): 38.5 dB
Max Noise Absorption (Lab Tested): 97%

Height: 6 ft 9 in (2050 mm)
Width: 4 ft 5 in (1335 mm)

Rolled Dimensions: 1 ft 4 in (400 mm) diameter, 4 ft 5 in (1335 mm) wide
Weight: 11.7 lb (5.3 kg)

Water Resistant Test Standard: BSEN 60529:1992 IPX6 / IPX9
Fire Resistant Test Standard: BS 7837-1996, ASTM E84

Dust Resistant Test Standard: BSEN 60529-1992
Cold Resistant Test Standard (result): BSEN 60068/2/1:2007 (-40 Degrees)

Tensile Test Standard (result): ISO 17025 (5.85 kN vertical, 1.1 kN horizontal)
UV Resistant: 3 years (USA Canada), 5 years (rest of the world)

Safety Features: Night-time reflective strips, hazard icon
Installation Time: 1 person in 30 seconds with installation kits, rollable

Installation Kits: Yes
Anti-Theft Protection: Security cable, Data tag

Cleaning: Power wash
Identification Code Part Number: Unique RFID number per each unit

Manufacturer’s Warranty: 1 Year

Additional information

Weight 25 lbs
Dimensions 53 × 16 × 16 in
