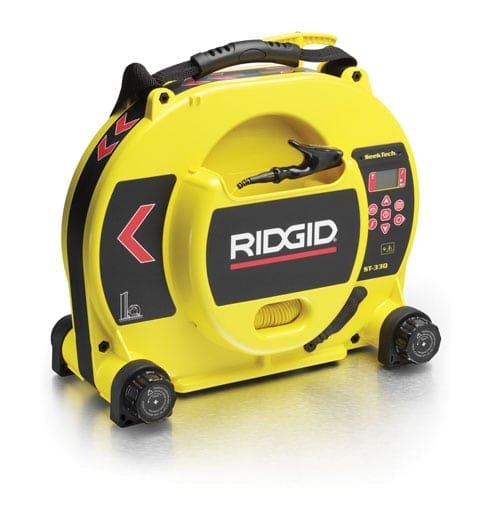

RIDGID 49338 ST-33Q Line Transmitter with Bluetooth


RIDGID 49338 ST-33Q Transmitter

Only 2 left in stock (can be backordered)

Add to Wishlist
Add to Wishlist
SKU: 49338 Categories: , , , Brand: UPC: 00095691493385


The RIDGID® ST-33Q Line Transmitter (with Bluetooth) is the ideal transmitter for inducing current onto a target line. It will also direct connect using any frequency from 10Hz to 490kHz* with power up to 10 Watts. The ST-33Q also allows the flexibility of using D-Cell alkaline batteries or 18V rechargeable RIDGID batteries for minimal interruptions on the job. The new Bluetooth feature on the ST-33Q allows you to finish complex locates faster by wirelessly changing the transmitted frequency from the SR-24 receiver from up to 200 yards away.


  • Distance: Induce over 8 times more current than traditional transmitters. More current means you can walk and trace further than ever before.

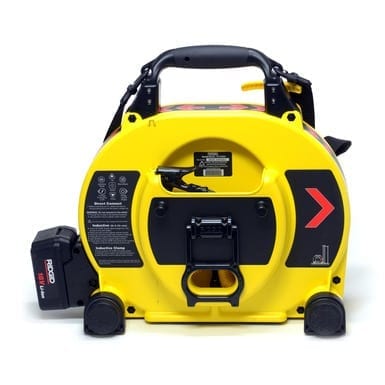

  • Versatility: Power options include Lithium-Ion 18 V rechargeable battery, six D-cell batteries, or an external 10-28 VDC power source.
  • Accuracy: Induce more current at lower frequencies. Lower frequencies are less prone to jump onto other lines in congested areas reducing distortion and increasing accuracy.
  • Speed: Use with a SR-24 Bluetooth-enabled locator, to control the ST-33Q settings wirelessly from the SR-24 receiver. Change transmitted frequency remotely from up to 200 yards away.


  • (1) RIDGID 49338 ST-33Q Transmitter


Direct Connect (pre-programmed): 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz, 262 kHz
Direct Connect (user programmed): Any Frequency from 10 Hz – 490 kHz

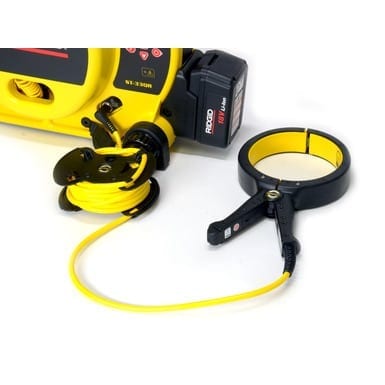

Induction: 8 kHz or 33 kHz

Additional information

Weight 12 lbs
