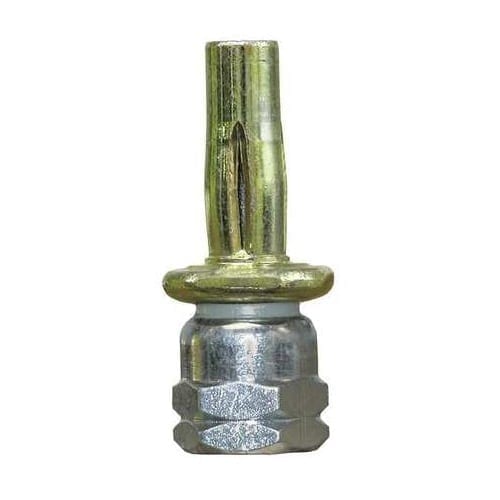

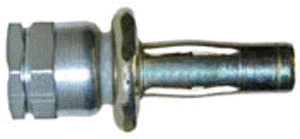

Buildex 8153922 Sammy Xpress Metal Deck & Perlin Fastener XP35 (25 Pack)

$94.35

Buildex Sammy Xpress Metal Deck & Perlin Fastener XP35 (25 Pack)

In stock

Add to Wishlist
Add to Wishlist
x
SKU: 8153922 Categories: , , Brand:

Description

Buildex Sammy Xpress Metal Deck & Perlin Fastener XP35 (25 Pack)

Features

  • Installs in seconds, saves time and installation costs
  • Use in applications where easy access to the back of the installed fastener is prohibited
  • No retaining nut required.
  • The X-Press System has earned the 9R21 and 25ES UL Listing.

Specifications

Rod Size: 3/8″-16
Substrate: Metal Deck, Purlin or Tubular Steel

Mount Style: Vertical
Substrate Fastener Size: 3/8″ x 1″

Ultimate Pullout: 1783 lb (16 ga.)
Type: Rod Anchor

Product Family: Sammy X-Press® Purlin 3/8 Rod
Anchor Diameter: 25/64″

Hole Size: 25/64″
Material: Steel

Finish: Electro-Zinc
Head: 5/8″ AF End-Drilled

Drive: Sammys X-Press IT® Installation Tool (8194910)
Grade: C1022 screw, C1010 cap

UL Maximum Pipe Size: 4″
UL Test Load: 1500 lb (4″ Pipe), 185 lb (Luminaire), 250 lb (Luminaire), 416 lb (Conduit & Cable)

UL Minimum Thickness: .029″, .056″, .059″, .060″
FM Max Pipe Size: 4″, 2″

FM Test Load: 940 lb (2″ Pipe), 1475 lb (4″ Pipe)
FM Minimum Thickness: .029″, .104″

Maximum Thickness: 1/8″
Recommended Installation Tool: Sammy X-Press IT® Installation Tool (8194910)

UL Approved: E245248, EX5098
FM Approved: 3020935, 3031269

Additional information

Weight 2.4 lbs
