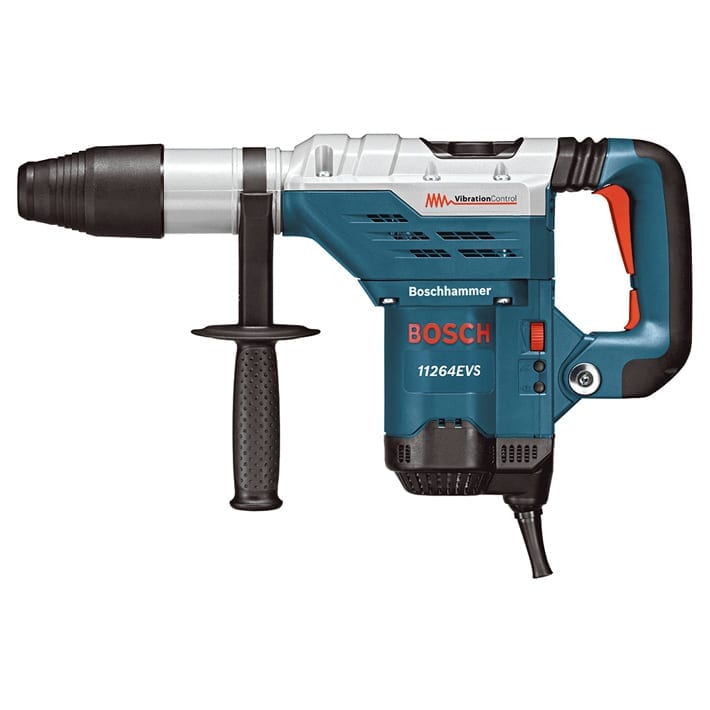

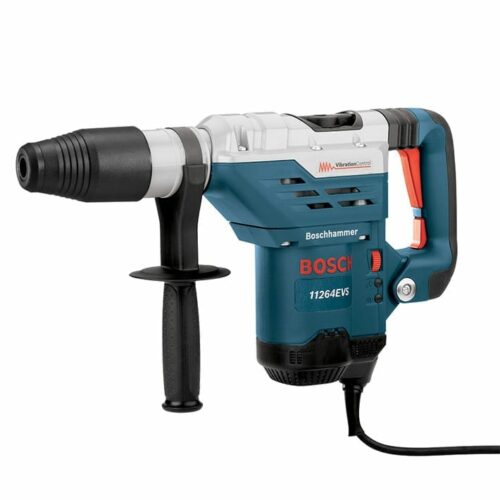

Bosch 11264EVS 1-5/8″ SDS-Max Rotary Hammer


The Bosch 11264EVS 1-5/8-In. SDS-max® Combination Hammer features a powerful 13.0-Amp motor and has a dual-mode selector for combination versatility – rotary hammer or hammer-only mode.

In stock

Add to Wishlist
Add to Wishlist
SKU: 11264EVS Categories: , , Brand: UPC: 000346383843


The Bosch 11264EVS 1-5/8-In. SDS-max® Combination Hammer motor provides 6.5 ft.-lbs. of impact energy, the tool weighs only 15.2 lbs., for a top performance-to-weight ratio. The hammer has integral clutch that helps to minimize torque reaction. Concrete contractors will appreciate the production in drilling and chiseling applications. The hammer’s 12-position Vario-Lock™ helps to optimize chiseling angles. Bosch’s Vibration Control™ in the hammer mechanism and grip area provide improved user comfort. And with Constant Response™ circuitry, users benefit from smooth starts and constant load under pressure.


  • Powerful 13.0-AMP motor – drives 6.5 ft.-lbs. of impact energy for professional results
  • Vibration Control™ – for all day jobs, tool allows for maximum user comfort
  • Constant Response™ circuitry — provides soft-start and maintains constant speed under load
  • Turbo™ Power — delivers 20 percent more power in hammer-only mode
  • Electro-pneumatic impact system maximizes impact force and minimizes vibration
  • SDS-max® bit system — tool-free bit changes with automatic bit-locking and maximum impact energy transfer rate
  • Dual-mode selector — 2 modes of operation, rotary hammer and hammer only mode
  • Variable-speed dial — for accurate bit starting and controlled chipping applications
  • Vario-Lock™ positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Integral clutch — helps minimize torque reaction
  • Weighs 15.2 lbs


  • (1) 360° Auxilliary Side Handle with Depth Stop
  • (1) Carrying Case


Amperage: 13.0
Chuck Design: Keyless

Chuck Size: SDS-Max
Height: 10.5″

Impact Energy/EPTA (ft. lbs.): Rotary Hammer Mode: 6.5 Ft./Lbs.
Length: 19.25″

Material: Metal, Plastic
Max. Hole Diameter in Concrete-Core Bit: 4-1/8″

Max. Hole Diameter in Concrete-Core Bit: 1-5/8″
No Load BPM: 1,700-2,900

No Load RPM: 170-340
Rating: 120V

Voltage: 120V
Weight: 15.2lb

Width: 4.0″

Additional information

Weight 25.6 lbs
